Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, make sure to follow the recommended component values and layout, and also consider the output capacitance and ESR. Additionally, a small series resistor (e.g., 1-2 ohms) can be added between the output and the capacitor to improve stability.
The maximum input voltage is not explicitly stated in the datasheet, but it's generally recommended to keep the input voltage within the specified operating range (2.7V to 5.5V) to ensure reliable operation and prevent damage to the device.
The LM4859SP/NOPB is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the device is properly heat-sinked to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's recommended to consult the datasheet and perform thermal simulations to ensure reliable operation.
To troubleshoot issues, start by verifying the input voltage, output load, and component values. Check for any signs of overheating, and ensure that the device is properly heat-sinked. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4859SP/NOPB Overview

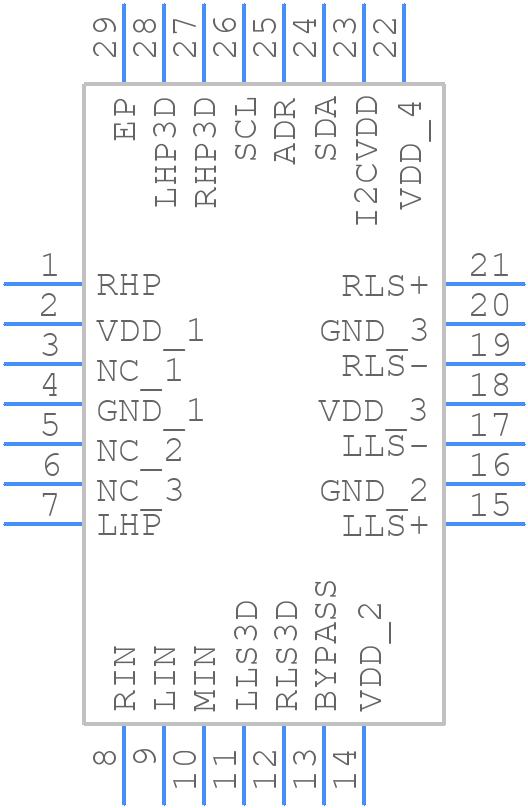

Use the download button to access the LM4859SP/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM485,
or try a keyword search, such as Other Consumer ICs
