LM4860MX/NOPB - Texas Instruments

Description: 1 Watt Audio Power Amplifier with Shutdown Mode

Download LM4860MX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

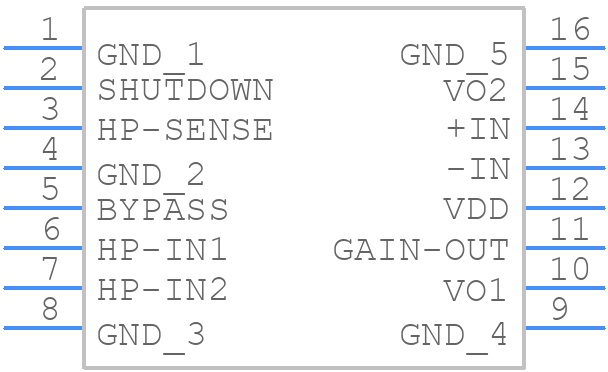

LM4860MX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4860MX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
LM4860MX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

LM4860MX/NOPB Details

  • Manufacturer Part Number:

    LM4860MX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    15.4 dB

  • Harmonic Distortion:

    0.72%

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.902 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Power-Nom:

    1.3 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.753 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM4860MX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4860MX involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The gain resistors (Rf and Ri) should be chosen based on the desired gain and input impedance. A higher gain requires smaller resistors, while a higher input impedance requires larger resistors. The datasheet provides a gain resistor calculator to help with the selection.
  • The maximum power dissipation of the LM4860MX is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation calculator to help determine the maximum power dissipation for a given application.
  • To filter out noise and EMI, use a low-pass filter or a ferrite bead in series with the input signal, and a decoupling capacitor between the power supply and ground. Additionally, use a shielded cable and keep the audio circuitry away from noisy components.
  • The recommended operating voltage range for the LM4860MX is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4860MX/NOPB Overview

Use the download button to access the LM4860MX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM486, or try a keyword search, such as Audio/Video Amplifiers
