LM4865M - Texas Instruments

Description: TEXAS INSTRUMENTS - LM4865M - AMP, AUDIO/VOLT CONTROL 0.75W, 4865

Download LM4865M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

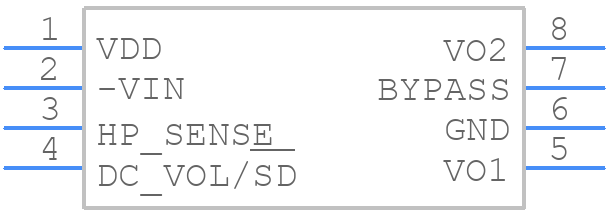

LM4865M - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4865M - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - R-PDSO-G8
click to zoom
3D Models
LM4865M - Texas Instruments - 3D model - Small Outline Packages - R-PDSO-G8
click to zoom

LM4865M Details

  • Manufacturer Part Number:

    LM4865M

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.902 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.753 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    3.9 mm

LM4865M Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note AN-1192, which includes guidelines for component placement, trace routing, and grounding to minimize noise and EMI.
  • The gain setting resistors (Rf and Rg) can be calculated using the formulae provided in the datasheet. Additionally, Texas Instruments provides a gain calculator tool on their website to simplify the process.
  • The maximum power dissipation of the LM4865M is dependent on the ambient temperature and the thermal resistance of the package. Ensure proper heat sinking and follow the thermal design guidelines in the datasheet to prevent overheating.
  • Yes, the LM4865M can be used in a stereo audio application. To configure it, use two separate LM4865M devices, one for each channel, and follow the stereo audio application circuit in the datasheet.
  • The recommended input capacitor value is typically in the range of 1-10uF, and a ceramic or film capacitor with a low ESR (Equivalent Series Resistance) is recommended to minimize noise and distortion.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4865M Overview

Use the download button to access the LM4865M schematic symbol, PCB footprint, and 3D model.
