A good PCB layout for the LM4865MM involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output capacitor can help prevent oscillation.
The maximum power dissipation of the LM4865MM is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this can be derated to 1.25W at 85°C ambient temperature.
Yes, the LM4865MM can be used as a line driver or a headphone amplifier. However, it's essential to ensure that the output stage is properly biased and loaded to prevent distortion and oscillation. Additionally, the device may require additional external components, such as output capacitors and resistors, to optimize its performance.
To protect the LM4865MM from ESD and overvoltage, it's recommended to use external protection devices such as TVS diodes or ESD protection arrays. Additionally, ensure that the device is handled and stored in an ESD-safe environment, and follow proper PCB design and layout guidelines to minimize the risk of overvoltage damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4865MM/NOPB Overview

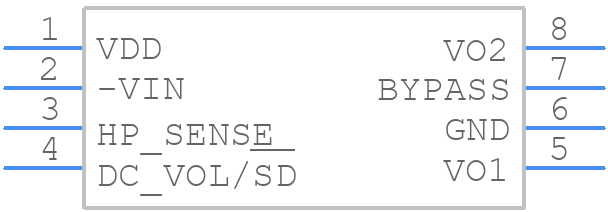

Use the download button to access the LM4865MM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM486,
or try a keyword search, such as Audio Control ICs
