SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Supply Current-Max:
20 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.4 mm
LM4866MTE/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and loops.
Proper biasing is critical for the LM4866MTE/NOPB. Ensure that the voltage supply is within the recommended range (2.7V to 5.5V), and that the input and output capacitors are properly sized and placed. Also, make sure to follow the recommended pin connections and decoupling capacitor values.
The maximum power dissipation of the LM4866MTE/NOPB is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. Also, follow the recommended operating conditions and avoid exceeding the maximum junction temperature (150°C).
Yes, the LM4866MTE/NOPB can be used in a stereo audio application. However, you'll need to use two devices, one for each channel, and ensure that the input and output signals are properly routed and decoupled. Also, make sure to follow the recommended layout and grounding practices to minimize crosstalk and noise.
To troubleshoot common issues with the LM4866MTE/NOPB, start by checking the power supply voltage and ensuring it's within the recommended range. Then, check the input and output signals for proper routing and decoupling. Also, ensure that the device is properly biased and that the input and output capacitors are properly sized and placed. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4866MTE/NOPB Overview

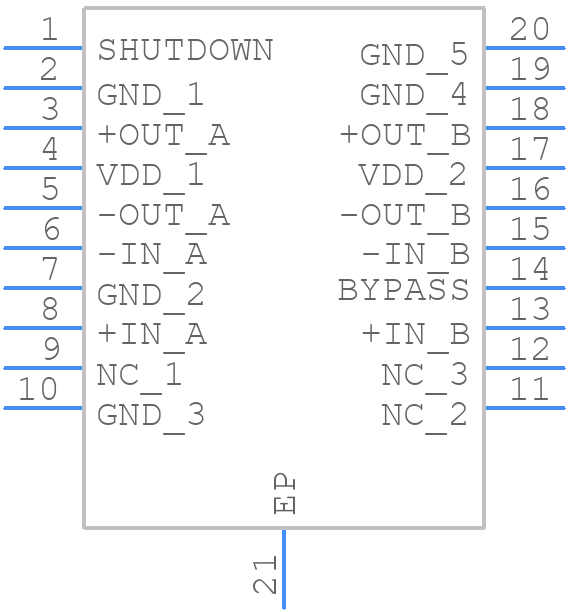

Use the download button to access the LM4866MTE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM486,
or try a keyword search, such as Audio/Video Amplifiers
