Texas Instruments provides a recommended PCB layout in the application note SLAA303, which includes guidelines for component placement, trace routing, and grounding to minimize noise and EMI.
The value of CIN depends on the input signal frequency, amplitude, and source impedance. A general rule of thumb is to choose a capacitor with a value of at least 10 times the input signal frequency. For example, for a 1 kHz input signal, a 10 uF capacitor would be a good starting point.
The maximum power dissipation of the LM4876MM/NOPB is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation, which is PDMAX = (TJMAX - TA) / θJA, where TJMAX is the maximum junction temperature, TA is the ambient temperature, and θJA is the thermal resistance of the package.
Yes, the LM4876MM/NOPB can be used in a stereo audio application. To configure it for stereo operation, you would need to use two devices, one for each channel, and connect the inputs and outputs accordingly. The datasheet provides a stereo audio application circuit that can be used as a reference.
The recommended voltage supply bypassing scheme for the LM4876MM/NOPB is to use a 10 uF capacitor in parallel with a 0.1 uF capacitor, both connected between the power supply pin and ground. This helps to filter out high-frequency noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4876MM/NOPB Overview

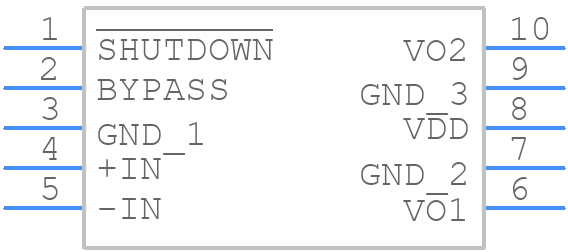

Use the download button to access the LM4876MM/NOPB schematic symbol, PCB footprint, and 3D model.
