A good PCB layout for the LM4889MAX/NOPB involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to keep the signal traces short and direct.
The input capacitor should be chosen based on the input voltage range and the desired ripple rejection. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors are good options due to their low ESR and high reliability.
The maximum power dissipation of the LM4889MAX/NOPB is 2.5W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink with a thermal conductivity of at least 1°C/W. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components.
Yes, the LM4889MAX/NOPB can be used in battery-powered devices. It has a low quiescent current of 1.5mA, which helps to extend battery life. Additionally, it has a shutdown mode that reduces the quiescent current to 0.01uA, making it suitable for battery-powered devices that require low power consumption.
To filter out noise and ripple in the output of the LM4889MAX/NOPB, you can use a low-pass filter, such as an RC filter or an LC filter. The filter components should be chosen based on the desired cutoff frequency and the output impedance of the device. Additionally, using a capacitor with a low ESR and a high-quality inductor can help to reduce noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4889MAX/NOPB Overview

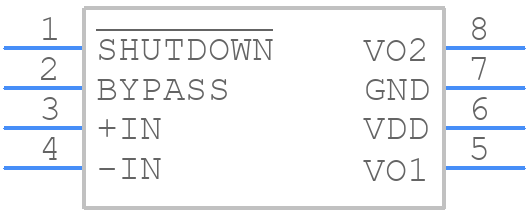

Use the download button to access the LM4889MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM488,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
