A good PCB layout for the LM4889MMX/NOPB involves keeping the audio signal traces away from the power supply and ground planes, using a solid ground plane, and minimizing the length of the audio signal traces. Additionally, using a shielded enclosure and keeping the device away from other noise-generating components can help reduce EMI.
To optimize the gain setting, you need to consider the input signal level, desired output level, and the gain range of the LM4889MMX/NOPB. Start by setting the gain to the midpoint of the gain range and adjust it based on the output signal level. You can also use the datasheet's gain vs. frequency graphs to determine the optimal gain setting for your specific application.
The maximum power dissipation of the LM4889MMX/NOPB is 1.4W. To ensure you don't exceed it, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Make sure to keep the power dissipation below the maximum rating by using a heat sink if necessary and ensuring good airflow around the device.
To filter out noise and hum, you can use a combination of passive and active filtering techniques. Use a low-pass filter to remove high-frequency noise, and a notch filter to remove specific frequency hum. You can also use a common-mode filter to remove electromagnetic interference (EMI). Additionally, ensure that your power supply is well-regulated and use a low-noise voltage regulator to minimize noise injection.
The recommended operating temperature range for the LM4889MMX/NOPB is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability. Ensure that your system design takes into account the operating temperature range and provides adequate cooling if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4889MMX/NOPB Overview

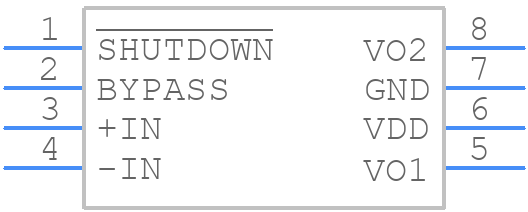

Use the download button to access the LM4889MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM488,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
