Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, distortion, and thermal issues.
The output filter components (L, C, and R) should be chosen based on the desired cutoff frequency, output impedance, and power handling. TI provides a filter design tool and application notes to help with component selection and optimization.
The maximum power dissipation of the LM48901RL/NOPB is dependent on the ambient temperature, package type, and thermal management. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this can be increased with proper heat sinking and thermal design.
Yes, the LM48901RL/NOPB can be used in a bridged configuration to increase the output power. However, this requires careful design and layout consideration to ensure proper phase matching, output filtering, and thermal management.
The recommended input coupling capacitor value depends on the input signal frequency, impedance, and desired high-pass filter cutoff frequency. A general guideline is to use a capacitor value between 1uF to 10uF, with a voltage rating that exceeds the maximum input signal amplitude.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48901RL/NOPB Overview

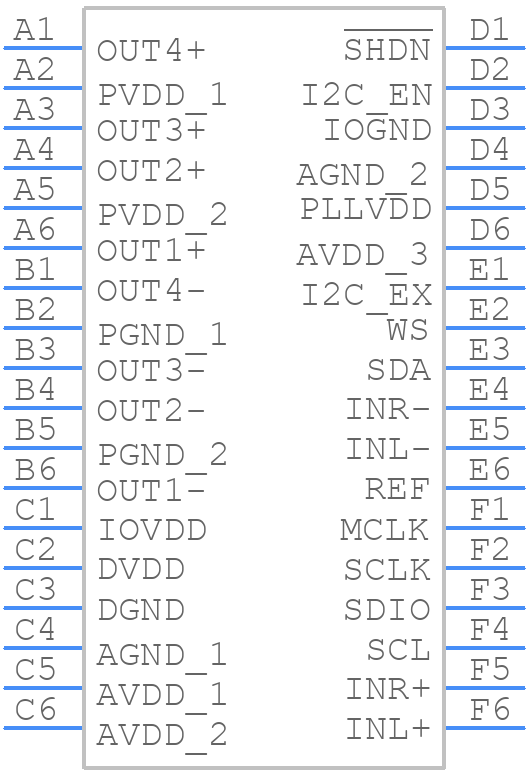

Use the download button to access the LM48901RL/NOPB schematic symbol, PCB footprint, and 3D model.
