Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and loops.
Proper biasing is critical for the LM48901SQE/NOPB. Ensure that the voltage supply is within the recommended range (2.7V to 5.5V), and that the input and output capacitors are properly selected to ensure stable operation. Additionally, follow the recommended pin connections and voltage divider configurations for the gain and volume controls.
The LM48901SQE/NOPB is a low-power audio amplifier, and its maximum power handling capability is limited. The device can deliver up to 1W of power per channel into a 4Ω load, but it's essential to ensure that the output power is within the recommended range to avoid overheating and damage to the device.
To troubleshoot common issues with the LM48901SQE/NOPB, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input and output capacitors are properly selected and connected. Check for any signs of overheating, and ensure that the device is properly biased. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging.
The LM48901SQE/NOPB is a general-purpose audio amplifier, and its operating temperature range is -40°C to 85°C. While it may be suitable for some automotive or industrial applications, it's essential to ensure that the device meets the specific requirements of the application, including temperature range, vibration, and electromagnetic compatibility (EMC). Consult the datasheet and application notes for guidance on using the LM48901SQE/NOPB in harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48901SQE/NOPB Overview

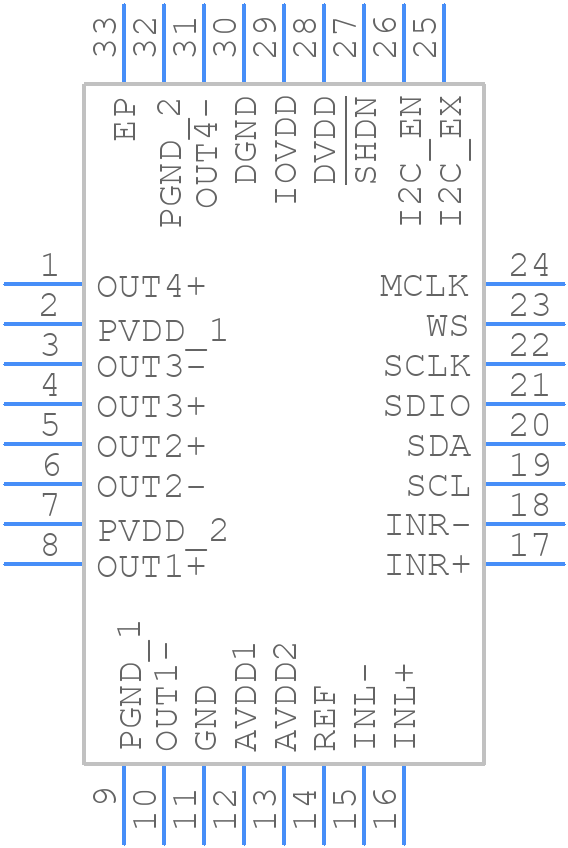

Use the download button to access the LM48901SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM489,
or try a keyword search, such as Audio/Video Amplifiers
