A good PCB layout for the LM4890MM/NOPB involves keeping the audio signal traces away from the power supply and ground planes, using a star-grounding configuration, and placing the device close to the power supply decoupling capacitors.
To ensure the LM4890MM/NOPB operates within its recommended operating conditions, make sure to provide a stable power supply voltage between 4.5V and 5.5V, keep the ambient temperature between -40°C and 85°C, and avoid exceeding the maximum junction temperature of 150°C.
The recommended input and output coupling capacitor value for the LM4890MM/NOPB is typically in the range of 1uF to 10uF, depending on the specific application and frequency response requirements.
To troubleshoot issues with the LM4890MM/NOPB, start by checking the power supply voltage and ensuring it is within the recommended range. Then, verify that the input and output coupling capacitors are properly connected and of the correct value. Finally, check for any signs of overheating or physical damage to the device.
Yes, the LM4890MM/NOPB can be used in a stereo audio application by using two devices, one for the left channel and one for the right channel. The devices can be connected in a master-slave configuration, with the master device providing the clock signal to the slave device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4890MM/NOPB Overview

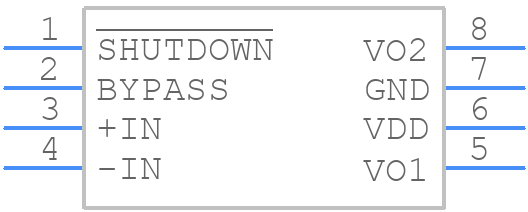

Use the download button to access the LM4890MM/NOPB schematic symbol, PCB footprint, and 3D model.
