LM4890MX/NOPB - Texas Instruments

Description: 1 Watt Audio Power Amplifier

Download LM4890MX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

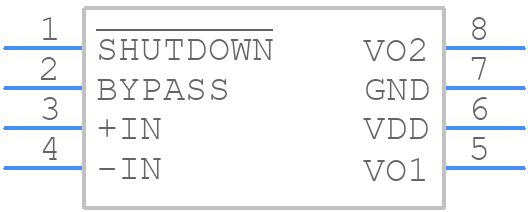

LM4890MX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4890MX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LM4890MX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

LM4890MX/NOPB Details

  • Manufacturer Part Number:

    LM4890MX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    2%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    93 dB

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM4890MX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4890MX involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 2.2uF to 10uF, while the output capacitor should be a low-ESR electrolytic capacitor with a value between 22uF to 100uF. The capacitor values depend on the specific application and the desired ripple voltage.
  • The LM4890MX is rated for operation from -40°C to 85°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the device. A thermal analysis should be performed to ensure the device operates within its thermal limits.
  • The LM4890MX has built-in overvoltage protection, but additional protection can be added using a voltage supervisor or a reset IC. Undervoltage protection can be achieved using a voltage detector or a brown-out detector. A fuse or a PTC can be used to protect against overcurrent conditions.
  • The recommended input voltage range for the LM4890MX is 2.7V to 5.5V, but the device can operate from 2.5V to 6V. However, the output voltage and current capabilities may be reduced at lower input voltages.
