A good PCB layout for the LM4906MM involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the power supply lines with a 10uF capacitor and a 100nF capacitor in parallel.
The maximum power dissipation of the LM4906MM is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this can be derated to 1.67W at 50°C ambient temperature.
The LM4906MM is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermally-enhanced package.
To protect the LM4906MM from overvoltage, use a voltage regulator or a transient voltage suppressor (TVS) to limit the input voltage to the recommended maximum rating. For overcurrent protection, use a current-limiting resistor or a fuse in series with the output.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4906MM/NOPB Overview

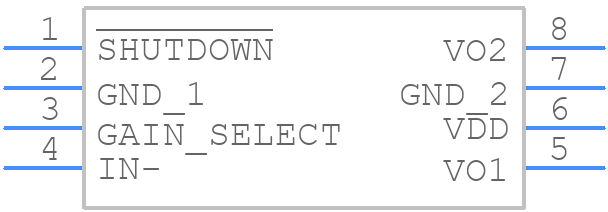

Use the download button to access the LM4906MM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM490,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
