A good PCB layout for the LM4910MM involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a small resistor (e.g., 10 ohms) in series with the output can help prevent oscillation.
The maximum input voltage for the LM4910MM is 12V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to prevent overvoltage conditions.
The LM4910MM is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If operation above 85°C is required, consider using a heat sink or a thermally-enhanced package.
To reduce noise and ripple, use a high-quality output capacitor with low ESR, and consider adding a noise-reducing capacitor (e.g., 10nF) in parallel with the output capacitor. Additionally, ensure that the input voltage is well-regulated and filtered.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4910MM/NOPB Overview

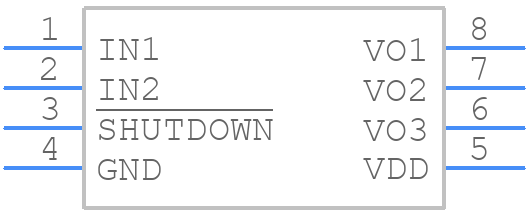

Use the download button to access the LM4910MM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM491,
or try a keyword search, such as Audio/Video Amplifiers
