Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and widths to reduce noise and EMI.
The LM4911QMM has a thermal pad on the bottom of the package that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a copper pour connected to a heat sink can be used to improve thermal management. Additionally, ensuring good airflow around the device and using a thermal interface material can also help reduce thermal resistance.
While the datasheet specifies a maximum supply voltage of 5.5V, it's generally recommended to operate the device at a voltage closer to 5V to ensure optimal performance and minimize power consumption. Exceeding the maximum supply voltage can reduce the device's lifespan and increase the risk of failure.
Yes, the LM4911QMM is a mono audio amplifier, but it can be used in a stereo audio application by using two devices, one for each channel. The devices can be connected in a master-slave configuration to ensure that the gain and frequency response are matched between channels.
Troubleshooting issues with the LM4911QMM typically involves checking the power supply voltage, ensuring proper PCB layout and grounding, and verifying that the input and output signals are within the specified ranges. A oscilloscope can be used to visualize the signals and identify any issues. Additionally, Texas Instruments provides application notes and technical support resources to help troubleshoot common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4911QMM/NOPB Overview

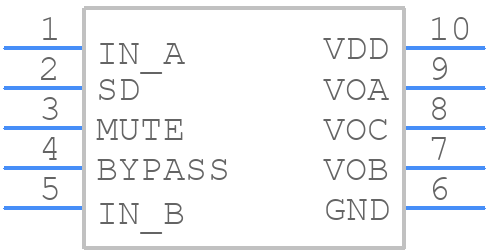

Use the download button to access the LM4911QMM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM491,
or try a keyword search, such as Audio/Video Amplifiers
