Texas Instruments provides a recommended PCB layout in the application note AN-1192, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Texas Instruments recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage, and an ESR of less than 100 mΩ. The application note AN-1192 provides more detailed guidance on capacitor selection.
The LM49120 is rated for operation from -40°C to 85°C, but the maximum ambient temperature range may be limited by the specific application and the thermal management system. Engineers should ensure that the device is operated within the recommended temperature range to ensure reliable operation and to prevent overheating.
Texas Instruments provides a troubleshooting guide in the application note AN-1192, which covers common issues and their solutions, including oscillation, instability, and overheating. Engineers can also use simulation tools, such as SPICE models, to simulate the circuit and identify potential issues before prototyping.
The LM49120 has a high power density, which requires careful thermal management to prevent overheating. Engineers should ensure that the device is mounted on a heat sink or a thermally conductive PCB, and that the thermal interface material (TIM) is properly applied. The application note AN-1192 provides guidance on thermal management and heat sink design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM49120TL/NOPB Overview

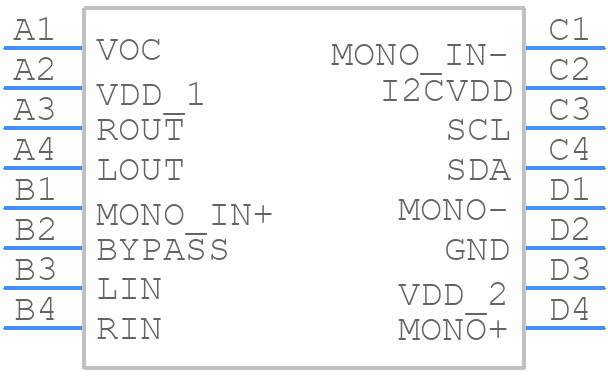

Use the download button to access the LM49120TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM491,
or try a keyword search, such as Audio/Video Amplifiers
