Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths.
Proper biasing is critical for the LM4915LQX/NOPB. Ensure that the voltage supply is within the recommended range (2.7V to 5.5V), and that the input bias voltage is set correctly (typically 1/2 of the supply voltage). Also, make sure to decouple the power supply lines with capacitors to reduce noise and ripple.
The maximum power dissipation of the LM4915LQX/NOPB is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. Also, keep the device away from other heat sources and ensure that the ambient temperature is within the recommended range (−40°C to 85°C).
To filter out noise and EMI, use a combination of passive and active filtering techniques. Use capacitors and resistors to filter out high-frequency noise, and consider adding an EMI filter or a common-mode choke to reduce electromagnetic interference. Also, ensure that the LM4915LQX/NOPB is properly shielded and grounded to reduce radiated emissions.
The recommended input impedance for the LM4915LQX/NOPB is 10kΩ to 100kΩ. A higher input impedance can result in a higher gain, but may also introduce noise and distortion. A lower input impedance can reduce gain, but may also improve signal-to-noise ratio and reduce distortion. Choose an input impedance that balances gain and signal quality for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4915LQX/NOPB Overview

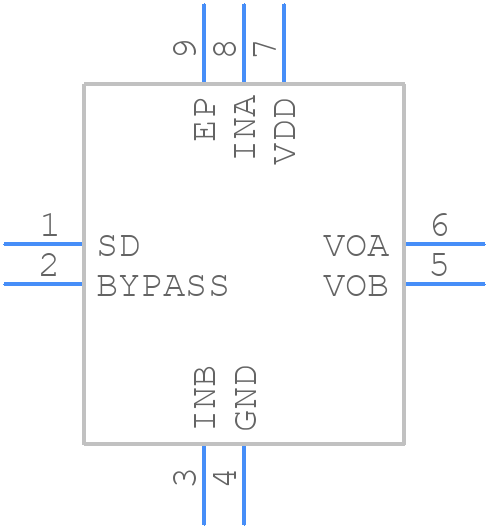

Use the download button to access the LM4915LQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM491,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
