LM4916MM/NOPB - Texas Instruments

Description: 1.5V, Mono 85mW BTL Output, 14mW Stereo Headphone Audio Amplifier

Download LM4916MM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

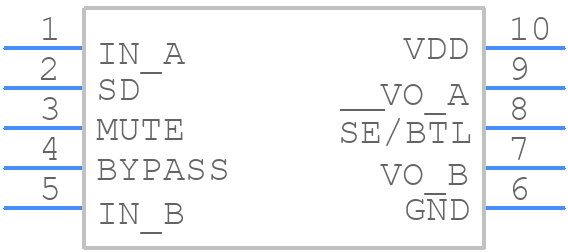

LM4916MM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4916MM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A height 1.1
click to zoom
3D Models
LM4916MM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS0010A height 1.1
click to zoom

LM4916MM/NOPB Details

  • Manufacturer Part Number:

    LM4916MM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.085 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.09 mm

  • Supply Current-Max:

    1.4 mA

  • Supply Voltage-Max (Vsup):

    2.5 V

  • Supply Voltage-Min (Vsup):

    0.9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM4916MM/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4916MM involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. A minimum output capacitance of 10uF is recommended.
  • The LM4916MM can handle a maximum input voltage of 12V. Exceeding this voltage may damage the device.
  • The LM4916MM is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the device's power handling and ensure proper heat sinking in high-temperature environments.
  • To troubleshoot issues with the LM4916MM, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, and ensure that the device is not operating outside its recommended specifications.
