Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and loops.
Proper biasing is critical for the LM4917SD. Make sure to follow the recommended biasing scheme in the datasheet, and ensure that the voltage supply is stable and well-regulated. Also, pay attention to the input impedance and output impedance of the device to ensure proper matching.
The maximum power dissipation of the LM4917SD is dependent on the package type and ambient temperature. For the SD package, the maximum power dissipation is 2.5W. To ensure the device doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device.
Yes, the LM4917SD can be used in a stereo audio application. To configure it for stereo operation, you'll need to use two devices, one for each channel. Make sure to follow the recommended circuit configuration in the datasheet, and pay attention to the input and output impedance matching for each channel.
The noise floor of the LM4917SD is typically around 20nV/√Hz. To minimize the noise floor, make sure to use a low-noise voltage regulator, keep the input and output traces short and well-shielded, and use a high-quality audio capacitor. Additionally, consider using a noise-reducing technique such as a noise filter or a chopper stabilization circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4917SD/NOPB Overview

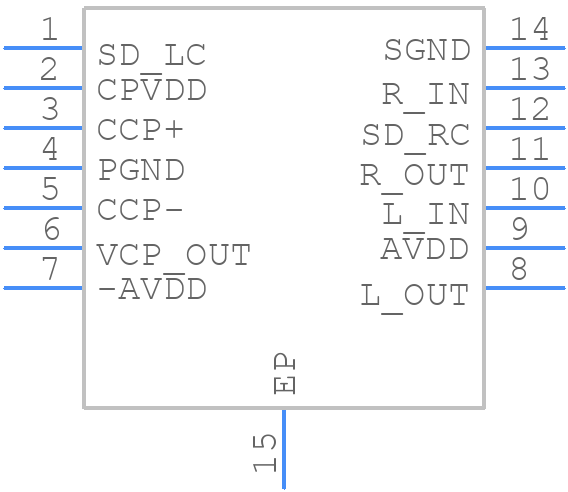

Use the download button to access the LM4917SD/NOPB schematic symbol, PCB footprint, and 3D model.
