Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
The LM49270SQ has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended thermal design guidelines in the datasheet.
The maximum power dissipation of the LM49270SQ is dependent on the operating conditions, such as ambient temperature, supply voltage, and output power. Refer to the datasheet for the power dissipation calculation formula and ensure the device is operated within the recommended specifications.
The LM49270SQ is not hermetically sealed, so it's not recommended for use in high-humidity environments. If operation in a humid environment is required, consider using a conformal coating or potting the device to protect it from moisture.
Troubleshooting issues with the LM49270SQ requires a systematic approach. Check the PCB layout, component values, and soldering quality. Use oscilloscopes and spectrum analyzers to measure the output signal and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM49270SQ/NOPB Overview

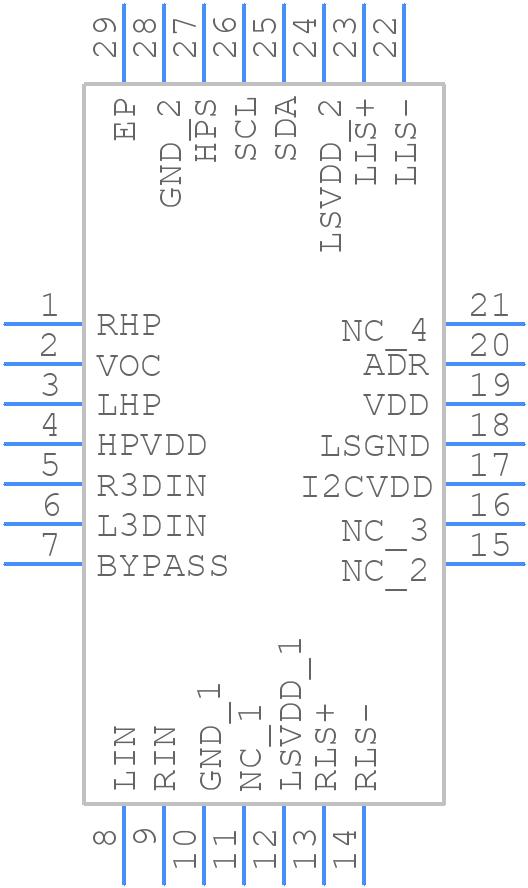

Use the download button to access the LM49270SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM492,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
