Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, thermal vias, and copper pours. Additionally, the TI website offers a PCB layout example and a thermal design guide for the LM4935RL/NOPB.
The output filter components (L, C, and R) should be selected based on the desired frequency response, output power, and load impedance. TI provides a filter design tool and application notes to help with component selection and optimization.
The maximum power dissipation of the LM4935RL/NOPB depends on the ambient temperature, PCB layout, and thermal management. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
Yes, the LM4935RL/NOPB can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output filter design, PCB layout, and thermal management to ensure reliable operation.
The recommended input coupling capacitor value depends on the input signal frequency and amplitude. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum input signal amplitude.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4935RL/NOPB Overview

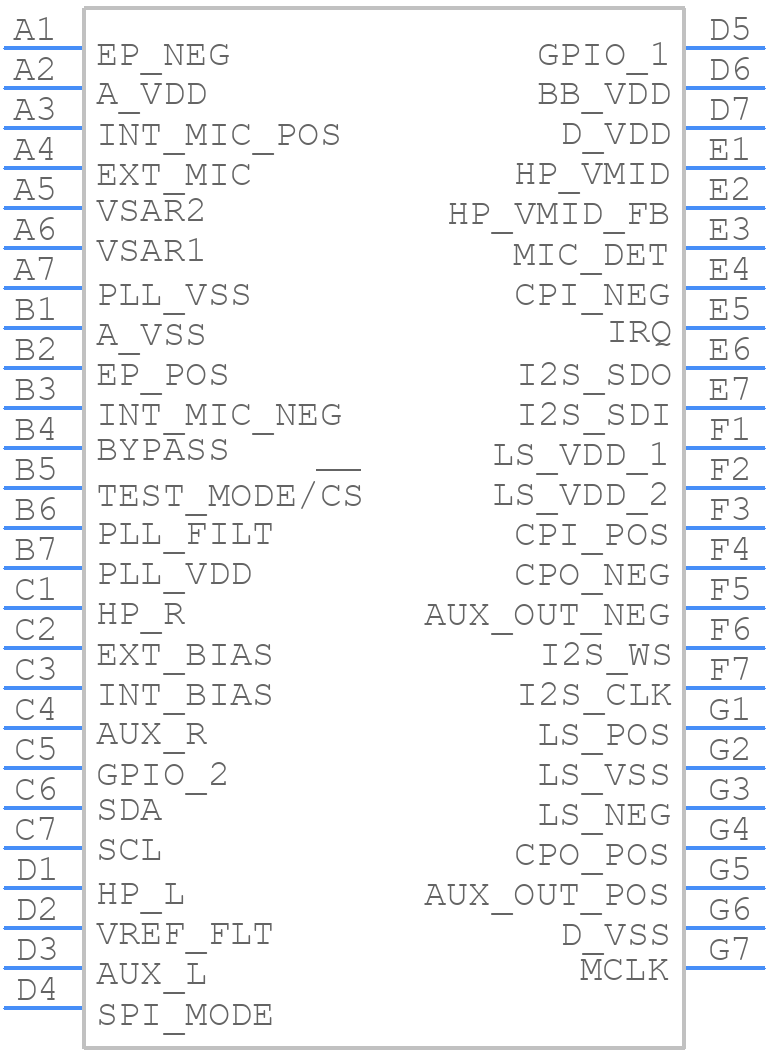

Use the download button to access the LM4935RL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM493,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
