SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
10 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.2 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
LM4990MH/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the LM4990MH/NOPB involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the IC.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the power supply lines and to use a low-impedance output capacitor.
The maximum power dissipation of the LM4990MH/NOPB is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
The LM4990MH/NOPB is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to derate the power dissipation at high temperatures to ensure reliable operation. Additionally, the device should be mounted on a heat sink or a thermally conductive substrate to ensure proper heat dissipation.
To protect the LM4990MH/NOPB from input voltage transients and surges, it's recommended to use a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. Additionally, a fuse or a current limiter can be used to protect the device from overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4990MH/NOPB Overview

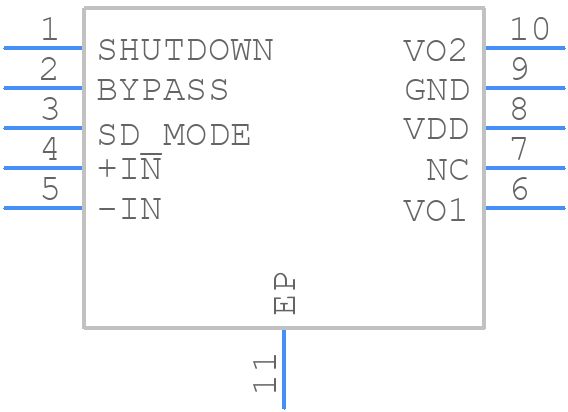

Use the download button to access the LM4990MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM499,
or try a keyword search, such as Audio/Video Amplifiers
