LM4990MMX/NOPB - Texas Instruments

Description: 2 Watt Audio Power Amplifier with Selectable Shutdown Logic Level

Download LM4990MMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

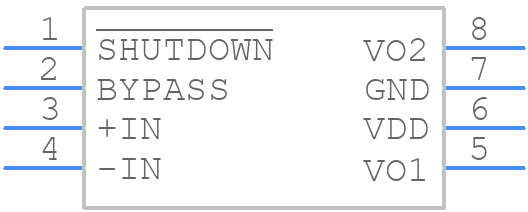

LM4990MMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4990MMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK
click to zoom
3D Models
LM4990MMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK
click to zoom

LM4990MMX/NOPB Details

  • Manufacturer Part Number:

    LM4990MMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM4990MMX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4990MMX/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a 10nF capacitor between the COMP and FB pins to improve phase margin. Also, avoid using long traces and minimize the distance between the device and the output capacitor.
  • The LM4990MMX/NOPB can handle input voltages up to 15V, but it's recommended to keep the input voltage below 12V to ensure reliable operation and minimize power dissipation.
  • The LM4990MMX/NOPB is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • The output voltage of the LM4990MMX/NOPB can be calculated using the formula: Vout = 1.23V x (1 + R1/R2), where R1 and R2 are the resistors connected between the OUT and FB pins.
