Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and widths to reduce noise and EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also consider the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) values, as they can affect the amplifier's stability. Additionally, adding a small capacitor (e.g., 10nF) between the output and the inverting input can help to improve stability.
The maximum power dissipation of the LM4992SD is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's essential to calculate the power dissipation based on the specific application and thermal environment to ensure the device operates within its safe operating area.
Yes, the LM4992SD can be used as a line driver or headphone amplifier. However, it's essential to consider the output power requirements and the load impedance. The LM4992SD can deliver up to 2.5Vrms into a 10kΩ load, making it suitable for line driving applications. For headphone amplification, the device can drive loads as low as 16Ω, but the output power will be limited to around 50mW.
To protect the LM4992SD from ESD and overvoltage events, it's recommended to add external protection components such as TVS (Transient Voltage Suppressor) diodes or zener diodes on the input and output pins. Additionally, consider adding a series resistor and a capacitor to the input pins to filter out high-frequency noise and transients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4992SD/NOPB Overview

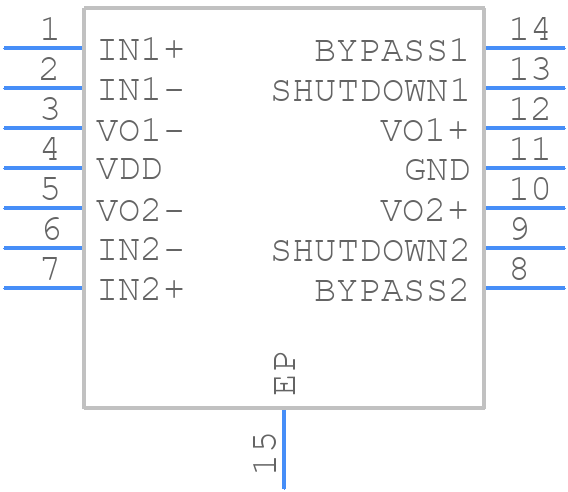

Use the download button to access the LM4992SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM499,
or try a keyword search, such as Audio/Video Amplifiers
