Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also add a 10uF capacitor between the VCC and GND pins to filter out noise. Additionally, use a low-ESR capacitor for the output filter to prevent oscillation.
The maximum power dissipation of the LM4995 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating temperature and thermal resistance.
Yes, the LM4995 can be used as a headphone amplifier, but it's essential to consider the output power requirements and impedance matching. The LM4995 can deliver up to 2W per channel into a 16Ω load, making it suitable for low-to-moderate power headphone applications.
To protect the LM4995 from ESD and overvoltage, use TVS diodes or ESD protection devices on the input and output pins. Additionally, add a voltage regulator or a transient voltage suppressor to regulate the input voltage and prevent overvoltage conditions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM4995TM/NOPB Overview

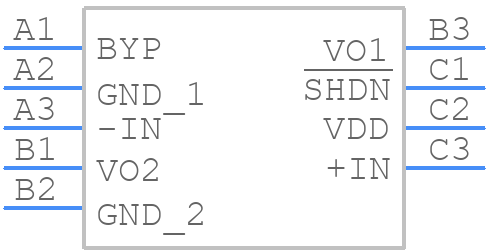

Use the download button to access the LM4995TM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM499,
or try a keyword search, such as Audio/Video Amplifiers
