Texas Instruments provides a recommended PCB layout in the LM5002MAX evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference, and ensure optimal performance.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and output current. Texas Instruments provides guidelines for capacitor selection in the LM5002MAX datasheet, including recommended values for input and output capacitance, and ESR (Equivalent Series Resistance) requirements.
The LM5002MAX is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Engineers should consult the datasheet and perform thermal analysis to ensure the device operates within its recommended temperature range.
The LM5002MAX has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. The value of the resistor determines the overcurrent threshold. Engineers should consult the datasheet for specific guidelines on implementing overcurrent protection.
The recommended startup sequence for the LM5002MAX is to first apply the input voltage, then enable the device by pulling the EN pin high. This ensures that the device starts up correctly and avoids any potential issues with the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5002MAX Overview

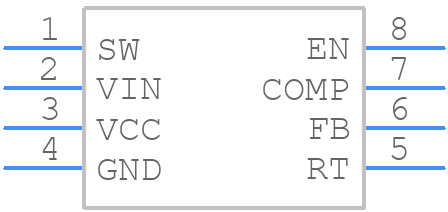

Use the download button to access the LM5002MAX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM500,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
