A good PCB layout for the LM5010SD/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input and output stages to reduce noise coupling.
The choice of input and output capacitors for the LM5010SD/NOPB depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. A minimum capacitance of 10uF is recommended for the input capacitor, and 22uF or higher is recommended for the output capacitor.
The LM5010SD/NOPB is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, it's recommended to keep the ambient temperature below 85°C for reliable operation.
Yes, the LM5010SD/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and it's also suitable for use in high-reliability industrial and medical applications.
To troubleshoot common issues with the LM5010SD/NOPB, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly sized and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5010SD/NOPB Overview

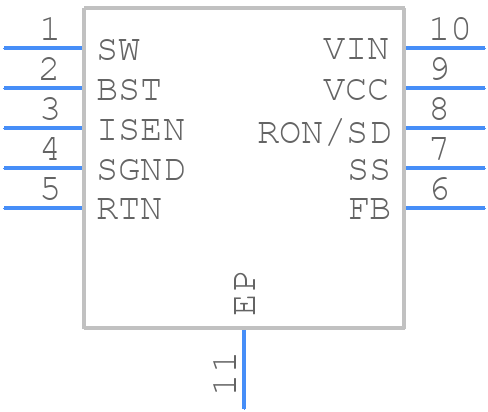

Use the download button to access the LM5010SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM501,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
