- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM5010SD
- Part Number LM5010SD
- Manufacturer Texas Instruments
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - DPR0010A
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5010SD Details
-
Manufacturer Part Number:
LM5010SD
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SON
-
Package Description:
4 X 4 MM, LLP-10
-
Pin Count:
10
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
LM5010SD Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the LM5010SD evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The input capacitor selection depends on the input voltage, current, and frequency. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the LM5010SD.
-
The LM5010SD has a maximum ambient temperature rating of 85°C, but it's essential to consider the junction temperature (TJ) as well. The TJ rating is 150°C, and it's crucial to ensure that the device does not exceed this temperature to prevent damage or malfunction. Proper thermal management, such as heat sinking and airflow, is necessary to keep the device within its operating temperature range.
-
Yes, the LM5010SD is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using a high-reliability process. However, it's essential to review the device's qualification data and perform additional testing and validation to ensure it meets the specific requirements of your application.
-
Troubleshooting issues with the LM5010SD requires a systematic approach. Start by reviewing the datasheet and application notes to ensure that the device is properly configured and laid out. Use oscilloscopes and other measurement tools to identify the source of the issue. Check for proper input and output filtering, ensure that the device is properly decoupled, and verify that the layout meets the recommended guidelines. If the issue persists, consult with Texas Instruments' support resources or seek assistance from an experienced engineer.
Trust Checks
System Verified
LM5010SD Overview

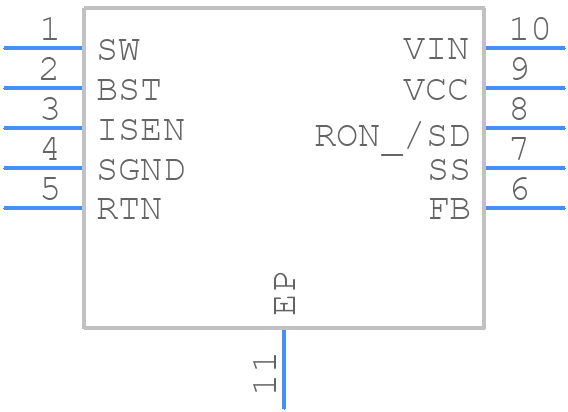

Use the download button to access the LM5010SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM501,
or try a keyword search, such as Switching Regulator or Controllers
