- Part Number LM5020SD-1
- Manufacturer Texas Instruments
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - DFN400X400X80-11N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5020SD-1 Details
-
Manufacturer Part Number:
LM5020SD-1
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
4 X 4 MM, LLP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LM5020SD-1 Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
-
Proper biasing of the LM5020SD-1 requires careful selection of the input and output voltage levels, as well as the bias resistors. The datasheet provides guidelines for biasing, but it's also important to consider the specific application requirements and to verify the biasing through simulation and testing.
-
The LM5020SD-1 has an operating temperature range of -40°C to 125°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance at temperatures above 85°C.
-
The LM5020SD-1 has built-in overvoltage protection, but it's still important to add external protection circuitry, such as TVS diodes or zener diodes, to protect the device from overvoltage and overcurrent conditions. It's also recommended to add input and output capacitors to filter out noise and reduce the risk of overvoltage.
-
The recommended input and output capacitance values depend on the specific application requirements, but a general rule of thumb is to use 10uF to 22uF ceramic capacitors for input and output filtering. It's also important to consider the capacitor's ESR and ESL values to ensure optimal performance.
Trust Checks
System Verified
LM5020SD-1 Overview

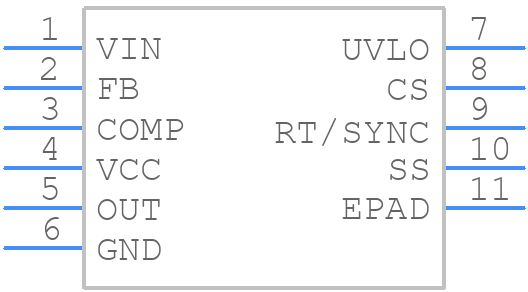

Use the download button to access the LM5020SD-1 schematic symbol, PCB footprint, and 3D model.
