Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, make sure to follow the recommended component values and layout guidelines, and also consider the output capacitor's ESR and ESL values. Additionally, a small ceramic capacitor (e.g., 10nF) can be added between the VCC pin and GND to improve stability.
The maximum input voltage is not explicitly stated in the datasheet, but according to Texas Instruments' application notes, the device can handle input voltages up to 42V, although the recommended maximum input voltage is 36V for optimal performance and reliability.
The LM5020SD-2/NOPB is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider thermal management techniques, such as heat sinking or airflow, to ensure reliable operation.
To troubleshoot issues, start by verifying the input voltage, output load, and component values. Use an oscilloscope to check the output voltage and current waveforms, and ensure the device is properly decoupled. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5020SD-2/NOPB Overview

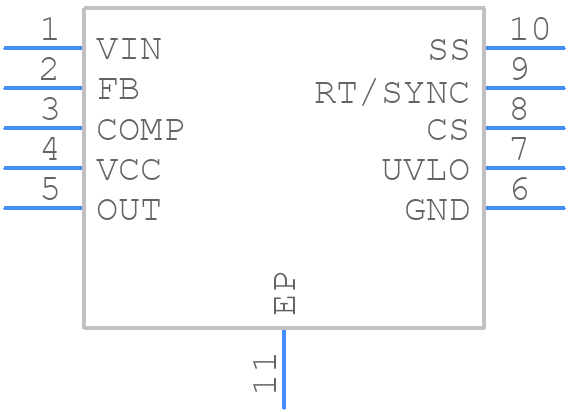

Use the download button to access the LM5020SD-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
