Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The LM5020SDX-2/NOPB has a thermal pad that must be connected to a heat sink or a thermal via to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink. Additionally, the PCB should be designed to allow for good airflow around the device.
The maximum allowed voltage on the input pins of the LM5020SDX-2/NOPB is the absolute maximum rating of 6V, but it's recommended to keep the input voltage below 5.5V to ensure reliable operation and prevent damage to the device.
To troubleshoot issues with the LM5020SDX-2/NOPB, start by verifying the PCB layout and component values, then check the input and output voltage waveforms using an oscilloscope. Ensure that the device is properly decoupled and that the input voltage is within the recommended range. If issues persist, consult the datasheet and application notes for guidance or contact Texas Instruments support.
The LM5020SDX-2/NOPB is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design and testing. However, it's recommended to consult with Texas Instruments and follow their guidelines for using commercial-grade devices in high-reliability or automotive applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5020SDX-2/NOPB Overview

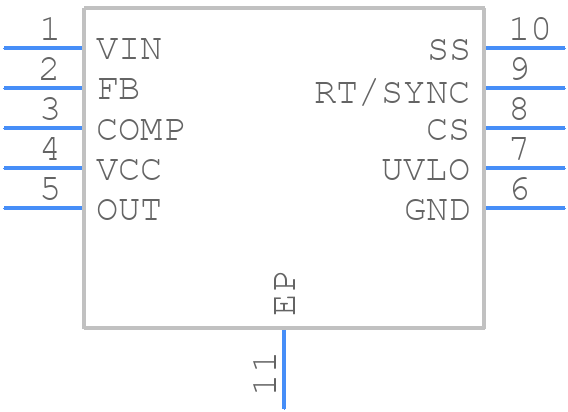

Use the download button to access the LM5020SDX-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
