Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The LM5020SDX-1/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended operating temperature range and power dissipation guidelines.
The maximum allowed voltage on the input pins is the supply voltage (VCC) plus 0.3V. Exceeding this voltage can cause damage to the device. Ensure that the input voltage is within the recommended operating range to prevent damage.
Start by verifying the PCB layout and ensuring that it follows the recommended guidelines. Check the power supply voltage and decoupling capacitors. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
The LM5020SDX-1/NOPB is a commercial-grade device, but Texas Instruments offers automotive-grade and high-reliability versions of the device, such as the LM5020SDX-1Q1 or LM5020SDX-1HV. Ensure that the device meets the specific requirements of your application, including temperature range, reliability, and qualification standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5020SDX-1/NOPB Overview

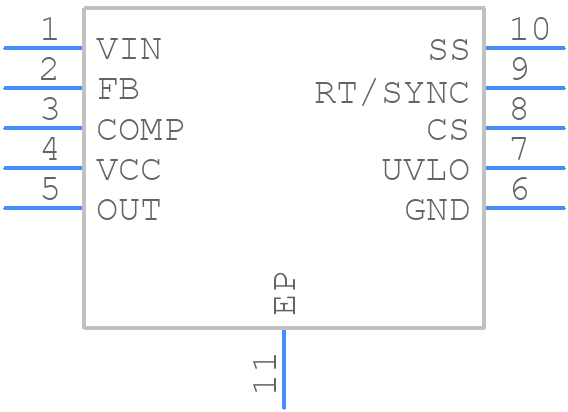

Use the download button to access the LM5020SDX-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
