Texas Instruments provides a recommended PCB layout in the LM5025ASD datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a thermal design guide to help ensure optimal performance.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR capacitors with a voltage rating of at least 2x the maximum input voltage. The datasheet provides guidelines for capacitor selection, and TI's capacitor selection tool can also be used to find suitable components.
The LM5025ASD is rated for operation from -40°C to 125°C ambient temperature. However, the device's thermal performance may be affected by the PCB layout, airflow, and other environmental factors. TI recommends following the thermal design guidelines in the datasheet to ensure reliable operation.
Yes, the LM5025ASD is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is also suitable for use in industrial and medical applications. However, additional testing and validation may be required to ensure compliance with specific industry standards.
TI provides a troubleshooting guide in the LM5025ASD datasheet, which covers common issues and their solutions. Additionally, the TI website offers a range of application notes, FAQs, and technical support resources to help engineers troubleshoot and resolve issues with the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5025ASD/NOPB Overview

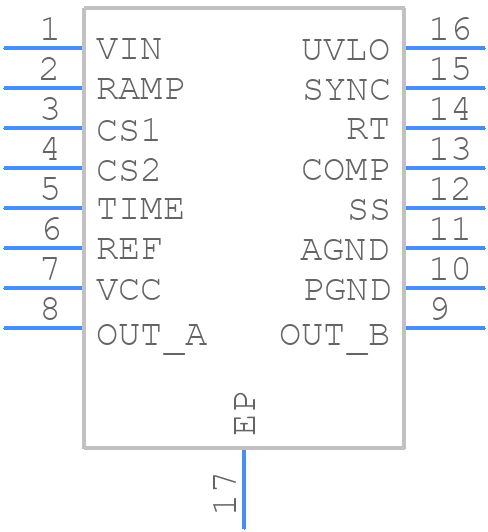

Use the download button to access the LM5025ASD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM502,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
