Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, ensure that the feedback resistors are properly sized and that the loop gain is sufficient. If oscillations occur, try adding a small capacitor (e.g., 10nF) in parallel with the feedback resistors.
The maximum input voltage is not explicitly stated in the datasheet, but it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device. Exceeding this voltage may cause the device to malfunction or fail.
The LM5039SQ/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Consult the datasheet for thermal derating curves and guidelines.
Use a oscilloscope to monitor the input and output voltages, as well as the switching node. Check for proper component values, PCB layout, and soldering. Verify that the input voltage is within the recommended range and that the output capacitors are properly sized. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5039SQ/NOPB Overview

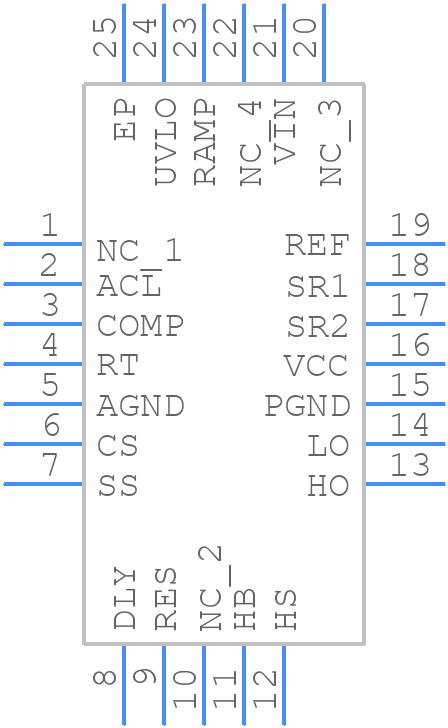

Use the download button to access the LM5039SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM503,
or try a keyword search, such as Switching Regulator or Controllers
