Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, the datasheet provides a stability analysis section that can help you determine the stability of the device.
The maximum ambient temperature range for the LM5039SQX/NOPB is -40°C to 125°C, but the device can operate up to 150°C with derating. It's essential to consider the thermal design and heat sinking to ensure the device operates within the specified temperature range.
Yes, the LM5039SQX/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to review the device's specifications and ensure it meets the specific requirements of your application.
To troubleshoot issues, start by reviewing the datasheet and application notes, and verify that the device is properly connected and configured. Use oscilloscopes and other measurement tools to analyze the input and output waveforms, and check for any signs of oscillation or instability. If the issue persists, contact Texas Instruments' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5039SQX/NOPB Overview

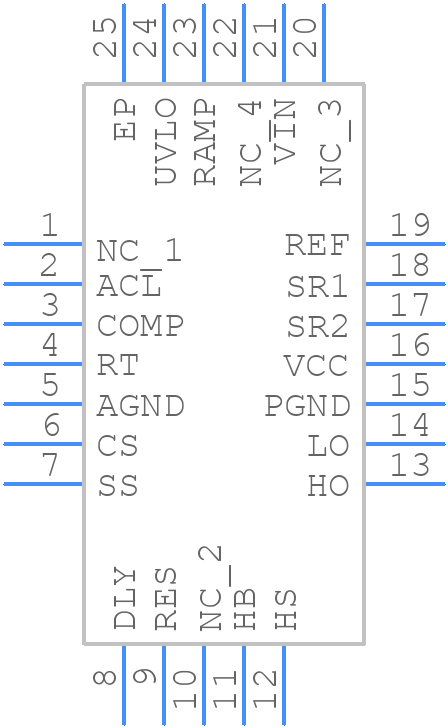

Use the download button to access the LM5039SQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM503,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
