Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure stability, follow the recommended component values and PCB layout, and make sure the input and output capacitors are properly selected and placed. Additionally, ensure that the feedback network is properly designed and the gain of the amplifier is set correctly.
The maximum power dissipation of the LM5041BMTCX/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
The LM5041BMTCX/NOPB is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
The LM5041BMTCX/NOPB has built-in overcurrent protection, but it's still recommended to add external protection circuitry, such as voltage clamps and current limiters, to protect the device from overvoltage and overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5041BMTCX/NOPB Overview

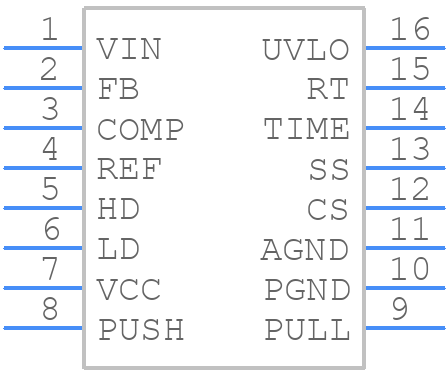

Use the download button to access the LM5041BMTCX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM504,
or try a keyword search, such as Switching Regulator or Controllers
