- Part Number LM5041SD/NOPB
- Manufacturer Texas Instruments
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - NHQ0016A_2021
- Released Date Dec 5, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5041SD/NOPB Details
-
Manufacturer Part Number:
LM5041SD/NOPB
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
LM5041SD/NOPB Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the LM5041SD datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a thermal design guide to help ensure optimal performance.
-
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. The datasheet provides more detailed guidance on input capacitor selection.
-
The LM5041SD has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
-
Yes, the LM5041SD is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using a high-reliability process. However, it's essential to review the device's qualification data and perform additional testing to ensure it meets the specific requirements of your application.
-
Texas Instruments provides a troubleshooting guide for the LM5041SD, which includes steps to identify and resolve common issues. Additionally, the TI website offers a power management forum where engineers can ask questions and share experiences with other users.
Trust Checks
Community Provided
System Verified
Community Approved
LM5041SD/NOPB Overview

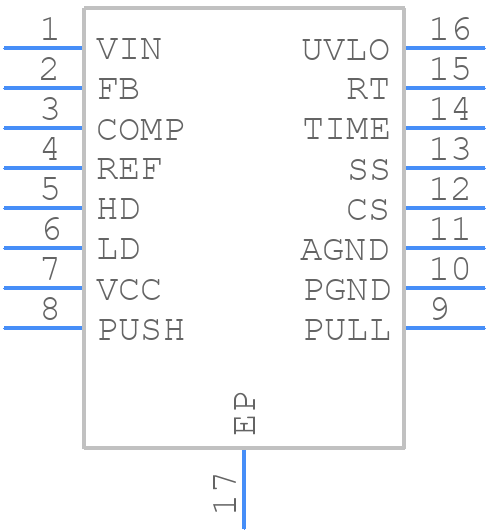

Use the download button to access the LM5041SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM504,
or try a keyword search, such as Switching Regulator or Controllers
