- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM5041SDX/NOPB
- Part Number LM5041SDX/NOPB
- Manufacturer Texas Instruments
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - NHQ0016A
- Released Date Oct 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5041SDX/NOPB Details
-
Manufacturer Part Number:
LM5041SDX/NOPB
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
LM5041SDX/NOPB Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the LM5041SDX/NOPB evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize electromagnetic interference (EMI).
-
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the LM5041SDX/NOPB.
-
The LM5041SDX/NOPB has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
-
The LM5041SDX/NOPB is a commercial-grade device, and its reliability and performance may not meet the stringent requirements of high-reliability or aerospace applications. Texas Instruments offers other devices, such as the LM5041QMLV, which are specifically designed and qualified for high-reliability and aerospace applications.
-
Troubleshooting issues with the LM5041SDX/NOPB requires a systematic approach. Start by verifying the input voltage, current, and frequency. Check the PCB layout and component values to ensure they meet the recommended specifications. Use oscilloscopes and other measurement tools to analyze the device's behavior and identify the root cause of the issue. Consult the datasheet, application notes, and Texas Instruments' support resources for guidance on troubleshooting and debugging.
Trust Checks
Community Provided
System Verified
Community Approved
LM5041SDX/NOPB Overview

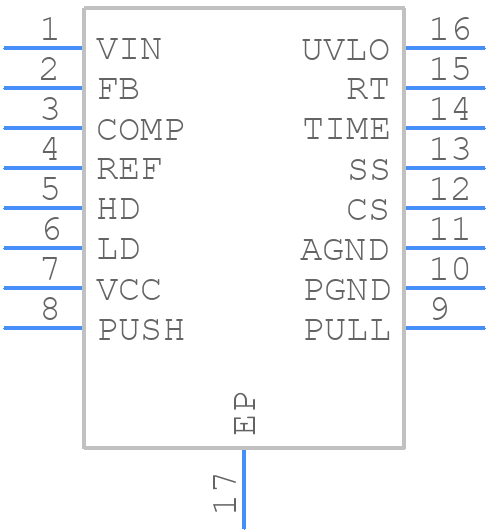

Use the download button to access the LM5041SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM504,
or try a keyword search, such as Switching Regulator or Controllers
