- Part Number LM5041SD
- Manufacturer Texas Instruments
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - DFN500X500X80-17N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5041SD Details
-
Manufacturer Part Number:
LM5041SD
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
LLP-16
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
LM5041SD Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the LM5041SD evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure reliable operation.
-
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the LM5041SD.
-
The maximum allowed voltage drop across the internal FETs is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses. Excessive voltage drop can lead to increased power dissipation, reduced efficiency, and potentially cause the device to overheat.
-
Yes, the LM5041SD can be used in a synchronous rectification configuration. In fact, the device is designed to work with an external synchronous rectifier FET. By using a synchronous rectifier, you can improve efficiency, reduce power losses, and minimize the need for heat sinking. However, ensure that the external FET is properly selected and driven to avoid shoot-through currents and other potential issues.
-
To troubleshoot the LM5041SD, start by verifying the input voltage, current, and frequency. Check the device's pin voltages, especially the enable and feedback pins, to ensure they are within the specified ranges. Use an oscilloscope to examine the switching waveforms and look for signs of oscillation, ringing, or other anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues, and consider using Texas Instruments' online support resources or contacting their technical support team for further assistance.
Trust Checks
System Verified
LM5041SD Overview

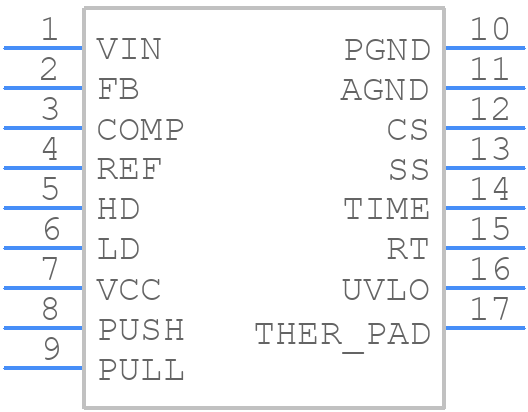

Use the download button to access the LM5041SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM504,
or try a keyword search, such as Switching Regulator or Controllers
