LM5056APMHE/NOPB - Texas Instruments

Description: Power Management Specialized - PMIC Hi Vtg System Pwr Mgmt IC

Download LM5056APMHE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

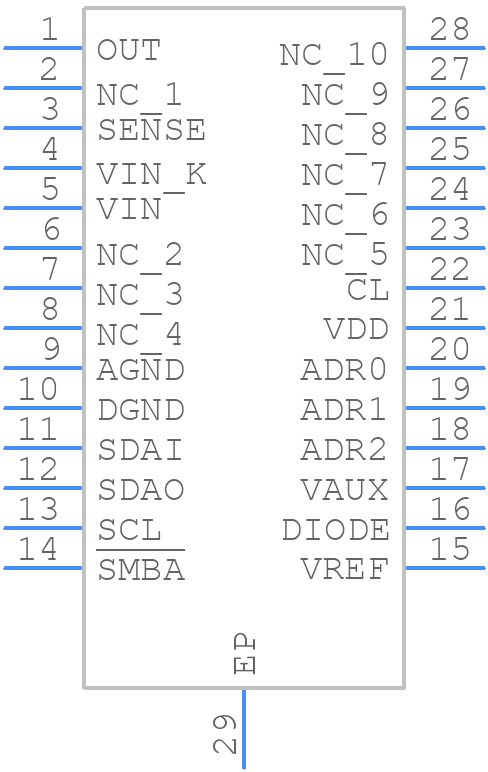

Symbol
LM5056APMHE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5056APMHE/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028A
click to zoom
3D Models
LM5056APMHE/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0028A
click to zoom

LM5056APMHE/NOPB Details

  • Manufacturer Part Number:

    LM5056APMHE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    6.8 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LM5056APMHE/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LM5056 application note (SLVAE04) that includes thermal vias, copper pours, and component placement guidelines to minimize thermal resistance and ensure optimal performance.
  • The selection of input capacitors depends on the input voltage, ripple current, and ESR requirements. TI recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The capacitor value should be chosen to ensure that the ripple current is within the recommended range.
  • The maximum output current capability of the LM5056 is dependent on the input voltage, output voltage, and thermal conditions. TI recommends derating the output current based on the thermal derating curve provided in the datasheet to ensure reliable operation.
  • The LM5056 has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The value of the resistor determines the overcurrent threshold. TI recommends using a resistor value that sets the overcurrent threshold to 1.5 times the maximum expected output current.
  • TI recommends a soft-start sequence to prevent inrush currents and ensure reliable startup. The recommended sequence is to first apply the input voltage, then enable the EN pin, and finally apply the output load.
