LM5060Q1MM/NOPB - Texas Instruments

Description: Texas Instruments LM5060Q1MM/NOPB, Current Limit Switch 5-Input 2-Output, 1.7mA, 10-Pin, VSSOP

Download LM5060Q1MM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

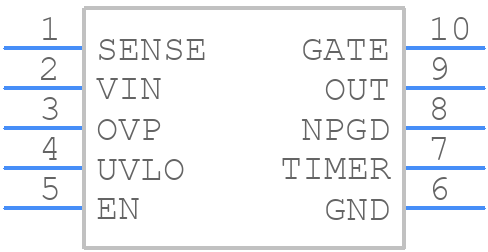

LM5060Q1MM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5060Q1MM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
LM5060Q1MM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

LM5060Q1MM/NOPB Details

  • Manufacturer Part Number:

    LM5060Q1MM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 5.1 VOLT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    5.5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.7 mA

  • Supply Voltage-Max (Vsup):

    65 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +5.1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM5060Q1MM/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM5060Q1MM/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor.
  • The LM5060Q1MM/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating. It's recommended to consult the datasheet for more information on temperature derating.
  • Yes, the LM5060Q1MM/NOPB is a high-reliability device that is suitable for use in automotive and industrial applications. It's manufactured using a high-reliability process and is qualified to the AEC-Q100 standard.
  • The output voltage of the LM5060Q1MM/NOPB can be calculated using the following formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the reference voltage.
