Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR and high ripple current ratings to handle the input voltage ripple. For output capacitors, select ones with low ESR and high capacitance to ensure good transient response and stability. Refer to the datasheet for specific recommendations and calculations.
The LM50672NPAR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
Yes, the LM50672NPAR is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended design and layout guidelines, and perform thorough testing and validation to meet the specific requirements of your application.
Start by verifying the PCB layout and component selection. Check for proper input and output capacitor selection, and ensure the device is properly decoupled. Use an oscilloscope to measure the input and output waveforms, and consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM50672NPAR Overview

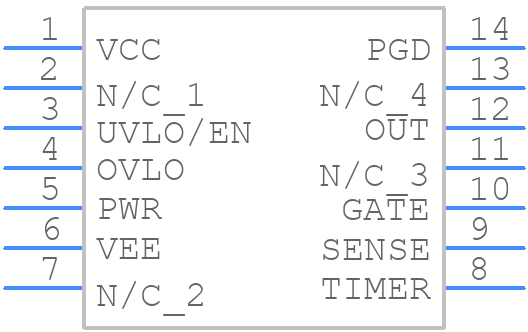

Use the download button to access the LM50672NPAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM506,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
