Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, follow the datasheet's guidelines for component selection, such as choosing the correct output capacitor and resistor values. Additionally, make sure to decouple the input and output pins properly, and consider adding a small capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
The LM5068MMX-2/NOPB has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
Yes, the LM5068MMX-2/NOPB is qualified for automotive and high-reliability applications, but additional testing and validation may be required. Texas Instruments provides a range of automotive-qualified and high-reliability devices, including the LM5068MMX-2/NOPB, which meet specific industry standards and requirements.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current draw. Check for proper component selection, PCB layout, and thermal design. Use an oscilloscope to monitor the output voltage and current waveforms, and consider using a thermal camera to identify hotspots. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5068MMX-2/NOPB Overview

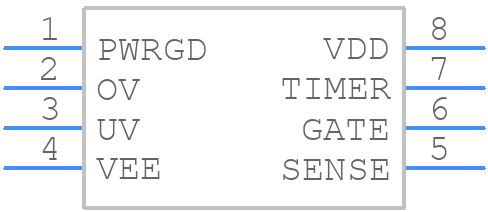

Use the download button to access the LM5068MMX-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM506,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
