Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The LM5070MTC-80/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Additionally, ensure good airflow around the device, and consider using a heat sink if the device will be operating at high temperatures or high power levels.
The maximum allowed voltage on the input pins of the LM5070MTC-80/NOPB is the supply voltage (VCC) plus 0.3V. Exceeding this voltage can cause damage to the device.
Yes, the LM5070MTC-80/NOPB can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent noise and oscillations. Additionally, the device's power handling capabilities should be considered when designing the regulator.
To troubleshoot issues with the LM5070MTC-80/NOPB, start by verifying the PCB layout and ensuring that the device is properly bypassed and decoupled. Check the input and output voltages, and use an oscilloscope to observe the waveforms. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5070MTC-80/NOPB Overview

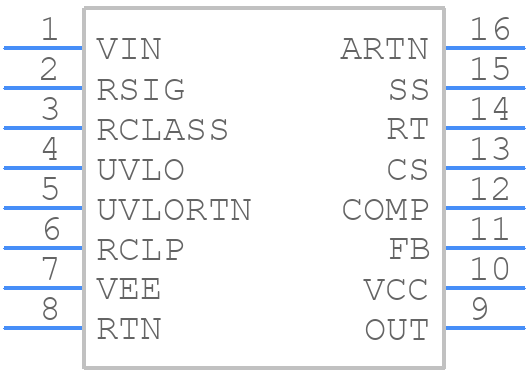

Use the download button to access the LM5070MTC-80/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM507,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
