A good PCB layout for the LM5088MHX-1/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the LM5088MHX-1/NOPB operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Ensure that the device is not subjected to excessive voltage, current, or temperature stress. Also, follow the recommended thermal design and PCB layout guidelines to minimize thermal resistance and ensure proper heat dissipation.
When selecting input and output capacitors for the LM5088MHX-1/NOPB, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. Choose capacitors with low ESR, high capacitance values, and voltage ratings that exceed the maximum input and output voltages. Additionally, ensure the capacitors are placed close to the device and have a low inductance path to the device pins.
To troubleshoot issues with the LM5088MHX-1/NOPB, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms. Also, verify the PCB layout and component selection to ensure they meet the recommended guidelines.
Operating the LM5088MHX-1/NOPB at high ambient temperatures can reduce its reliability and lifespan. High temperatures can increase the device's junction temperature, leading to reduced performance, decreased efficiency, and potentially even thermal shutdown. Ensure proper heat dissipation and thermal design to minimize the device's junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5088MHX-1/NOPB Overview

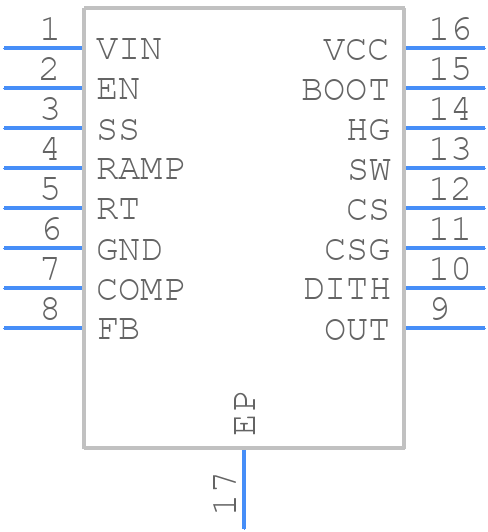

Use the download button to access the LM5088MHX-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM508,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
