A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is minimized to prevent voltage spikes.
The output voltage accuracy of the LM5088QMH-1/NOPB is primarily affected by the tolerance of the internal voltage reference, the resistor divider network, and the output voltage sensing circuitry. Ensure that these components are selected with tight tolerances to achieve the desired output voltage accuracy.
To minimize EMI, follow good PCB layout practices, such as separating analog and digital circuits, using a solid ground plane, and minimizing loop areas. Additionally, use shielding, filtering, and decoupling capacitors as needed to reduce EMI emissions.
When designing for thermal performance, consider the device's power dissipation, junction temperature, and thermal resistance. Ensure good thermal conductivity between the device and the heat sink, and consider using thermal interface materials to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5088QMH-1/NOPB Overview

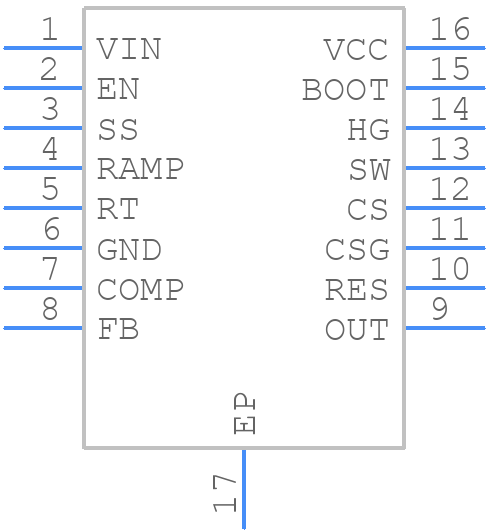

Use the download button to access the LM5088QMH-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM508,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
