A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure reliable start-up and shutdown, it is recommended to use a soft-start circuit to limit the inrush current, and to add a delay between the enable signal and the input voltage to prevent false triggering. Additionally, a pull-up resistor on the enable pin can help to prevent unwanted shutdowns.
When selecting the output capacitor, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. A higher capacitance value can help to reduce output voltage ripple, but may increase the start-up time. A low ESR can help to reduce energy losses, and the voltage rating should be higher than the maximum output voltage.
To minimize EMI, use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and use a common-mode choke to reduce common-mode noise. Additionally, use a layout that minimizes loop areas and keeps the high-frequency nodes away from the low-frequency nodes.
Thermal design considerations include ensuring good airflow around the device, using a heat sink or thermal pad, and minimizing the thermal resistance between the device and the PCB. The device's thermal pad should be connected to a solid ground plane or a thermal relief pattern to dissipate heat efficiently.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5088QMHX-1/NOPB Overview

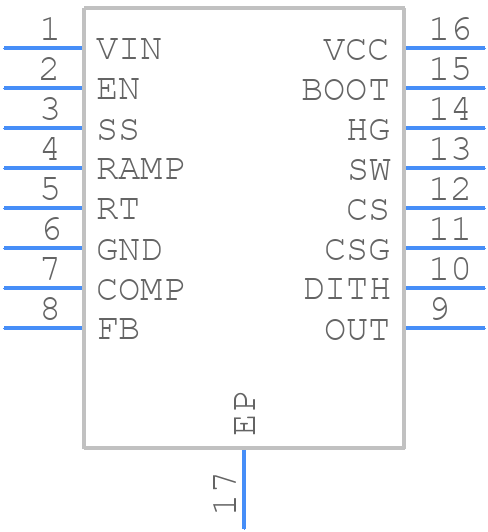

Use the download button to access the LM5088QMHX-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM508,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
