A good PCB layout for the LM5088QMH-2/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the input capacitor is properly sized to filter out noise and ripple. Additionally, add a soft-start circuit to limit inrush current and prevent voltage overshoot.
The critical components that affect EMI performance include the input filter capacitors, output filter inductors, and the PCB layout. Proper selection and placement of these components can significantly reduce EMI emissions and improve device performance.
To optimize the device for low standby power consumption, ensure that the input voltage is minimized, and the device is operated in a low-power mode or shutdown mode when not in use. Additionally, consider using a low-power mode controller or a power-good signal to minimize standby power consumption.
Key considerations for thermal design and heat sinking include ensuring good thermal contact between the device and the heat sink, using a heat sink with a high thermal conductivity, and providing adequate airflow to dissipate heat. TI provides thermal design guidelines and thermal models to aid in heat sink design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5088QMH-2/NOPB Overview

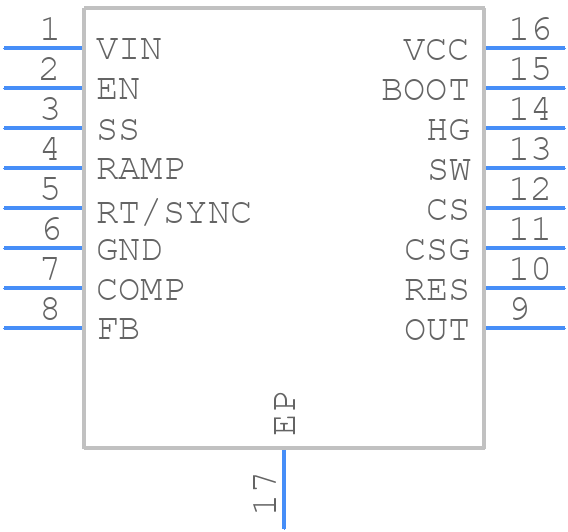

Use the download button to access the LM5088QMH-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM508,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
