A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional guidance.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, as outlined in the datasheet. Additionally, ensure that the input voltage ramps up and down slowly to prevent inrush currents and voltage spikes.
The output voltage accuracy of the LM5088QMHX-2/NOPB is affected by the tolerance of the internal voltage reference, the resistor divider network, and the output voltage sensing circuitry. Ensure that these components are selected with tight tolerances to achieve the desired output voltage accuracy.
To minimize EMI, follow good PCB layout practices, such as separating analog and digital circuits, using a solid ground plane, and minimizing loop areas. Additionally, use shielding, filtering, and decoupling capacitors as needed to reduce EMI emissions.
When selecting the output capacitor, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A capacitor with low ESR and a suitable capacitance value helps to ensure stability and regulate the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5088QMHX-2/NOPB Overview

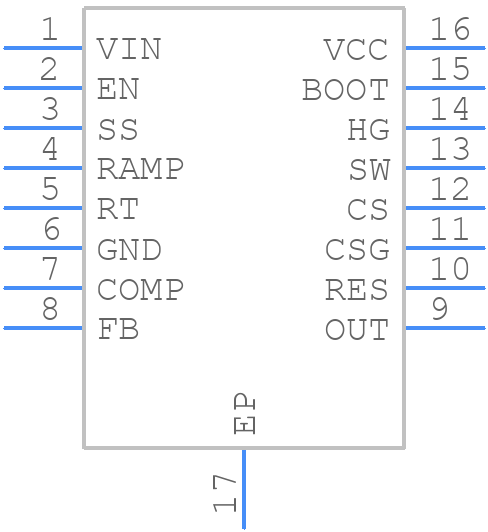

Use the download button to access the LM5088QMHX-2/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM508,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
Suggested Parts
If you searched for LM5088QMHX-2/NOPB, you might also be interested in these parts:
