- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM5102MMX/NOPB
- Part Number LM5102MMX/NOPB
- Manufacturer Texas Instruments
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DGS0010A
- Released Date May 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5102MMX/NOPB Details
-
Manufacturer Part Number:
LM5102MMX/NOPB
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
MSOP
-
Pin Count:
10
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
LM5102MMX/NOPB Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
-
The LM5102MMX/NOPB has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating at high temperatures or high currents.
-
The maximum allowed voltage on the input pins of the LM5102MMX/NOPB is the supply voltage (VCC) plus 0.3V. Exceeding this voltage can cause damage to the device.
-
Yes, the LM5102MMX/NOPB is suitable for use in switching regulator applications, but it's essential to ensure that the device is properly bypassed and that the input and output capacitors are selected to meet the requirements of the specific application.
-
To troubleshoot issues with the LM5102MMX/NOPB, start by verifying the PCB layout and component selection, then check the input and output voltage waveforms using an oscilloscope. Ensure that the device is properly bypassed and that the input and output capacitors are suitable for the application. If the issue persists, consult the Texas Instruments support resources or contact a technical support engineer.
Trust Checks
Community Provided
System Verified
Community Approved
LM5102MMX/NOPB Overview

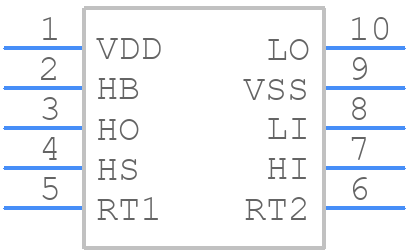

Use the download button to access the LM5102MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM510,
or try a keyword search, such as MOSFET Drivers
